Bernacki & Associates, Inc.

Case Study:
Addressing Transport Damage
19th Century Gilt Framed Mirror

Monumental 19th century French water gilt mirror with arched beveled plate features an ornamental female face at top central crest medallion flanked on both sides by laurel leaf and berry branches. The upper edge of the frame is adorned with various guilloche, beading, floral and foliage ornamentation. Two human figures sculpted in gesso beautifully flank the mirror on the sides.

Overall Dimensions: 42.5”W x 4.5”D x 67”H
Mirror Slot: 36.5”W x 57”H

Overall condition before treatment

Overall condition before treatment

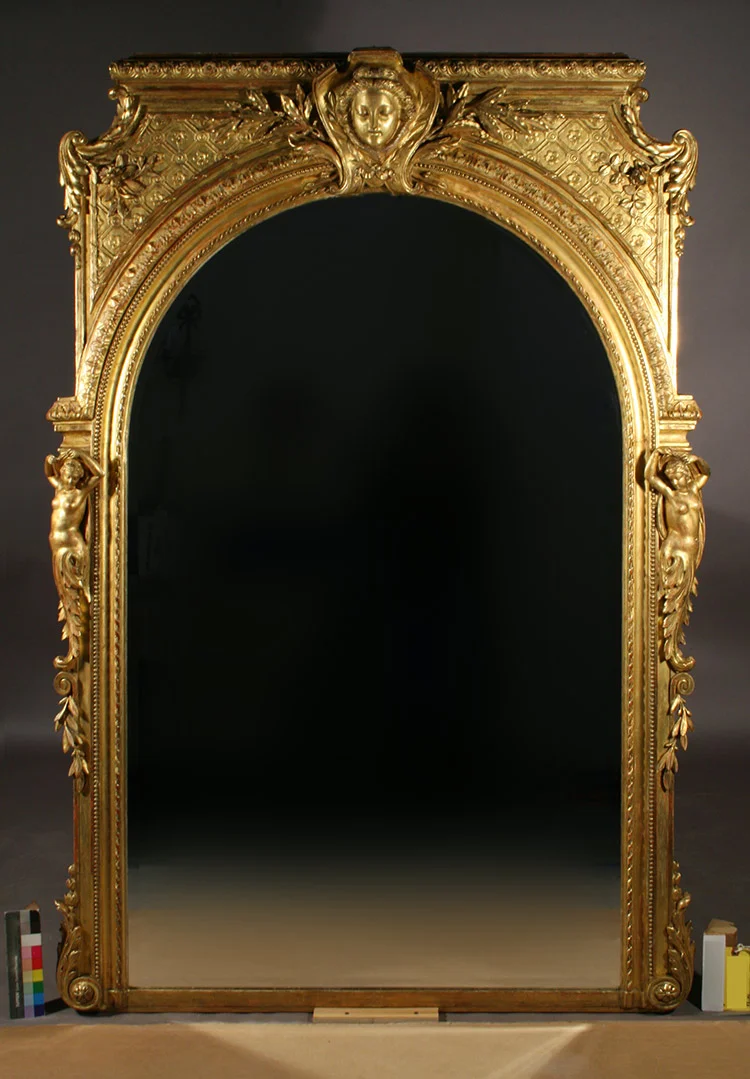

Mirror frame post-conservation with replacement mirror glass

Mirror frame post-conservation with replacement mirror glass

Condition & Treatment

The gilded frame sustained severe impact damage in transport resulting in disfiguring losses to the elaborate ornamentation. The original beveled mirror was completely shattered and at the time of inspection and the pieces of glass were retained with no glass remnants within the frame. There were detached pieces of gilded ornamentation mixed in with the shattered glass. Thirteen pieces of various sized pieces of detached gilded ornament were found at the bottom of the mirror’s shipping crate. Many losses of gilding and gesso were scattered across the entire frame, with worst area of damage concentrated at the top center medallion cluster with a woman’s face that was completely detached and in pieces. The figure on right side had deep impact abrasions with severe loss of gesso and gilding: approximately half an inch of gesso was completely scraped off the figure’s entire arm and the part of the chest. On the left, top corner there where two large detached pieces with surrounding losses and a large crack that has shifted.

Structurally, there was some movement in many of the joints, but no major separations. The wood backing was loose in many sections.

The treatment involved the installation of a new beveled panel. The frame was structurally stabilized, and the original historic gilding was treated. The cracked, loose, and delaminating gesso and ornamentation were consolidated. Detached pieces were reattached, and the areas of losses were infilled to blend in with the surrounding original gilding in profile, color, and sheen.

Gilt gesso, plaster, and composition elements that detached due to impact during shipment

Gilt gesso, plaster, and composition elements that detached due to impact during shipment

Evaluating the extent of damage to the frame after removing it from the shipping crate

Evaluating the extent of damage to the frame after removing it from the shipping crate

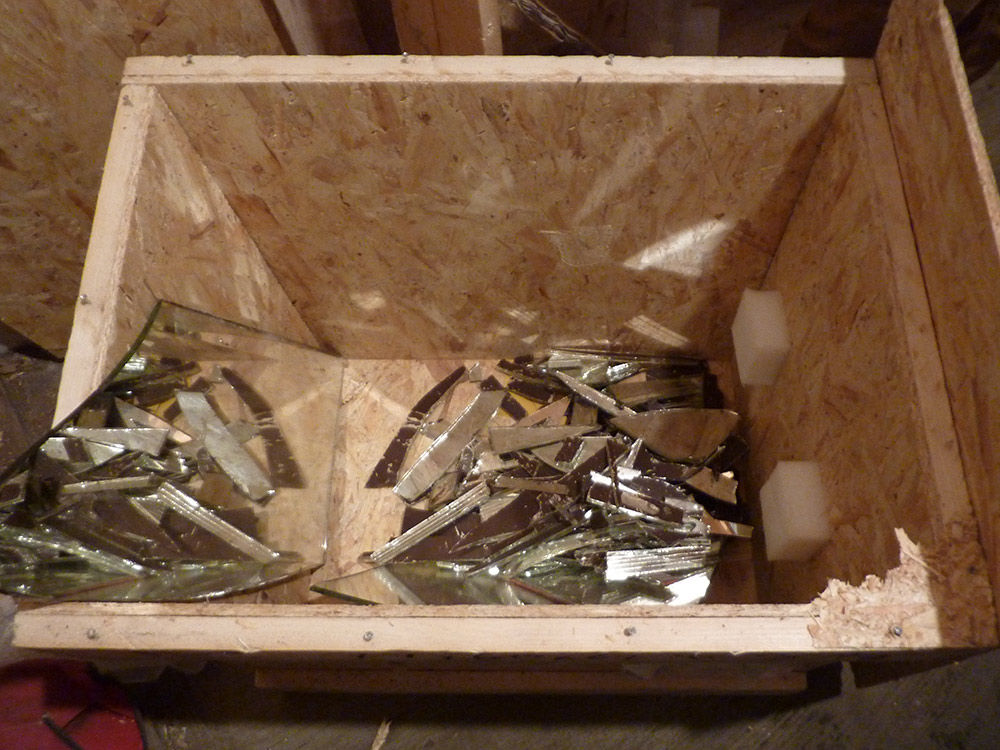

Shattered 3/8” thick beveled mirror glass at the bottom of the shipping crate

Shattered 3/8” thick beveled mirror glass at the bottom of the shipping crate

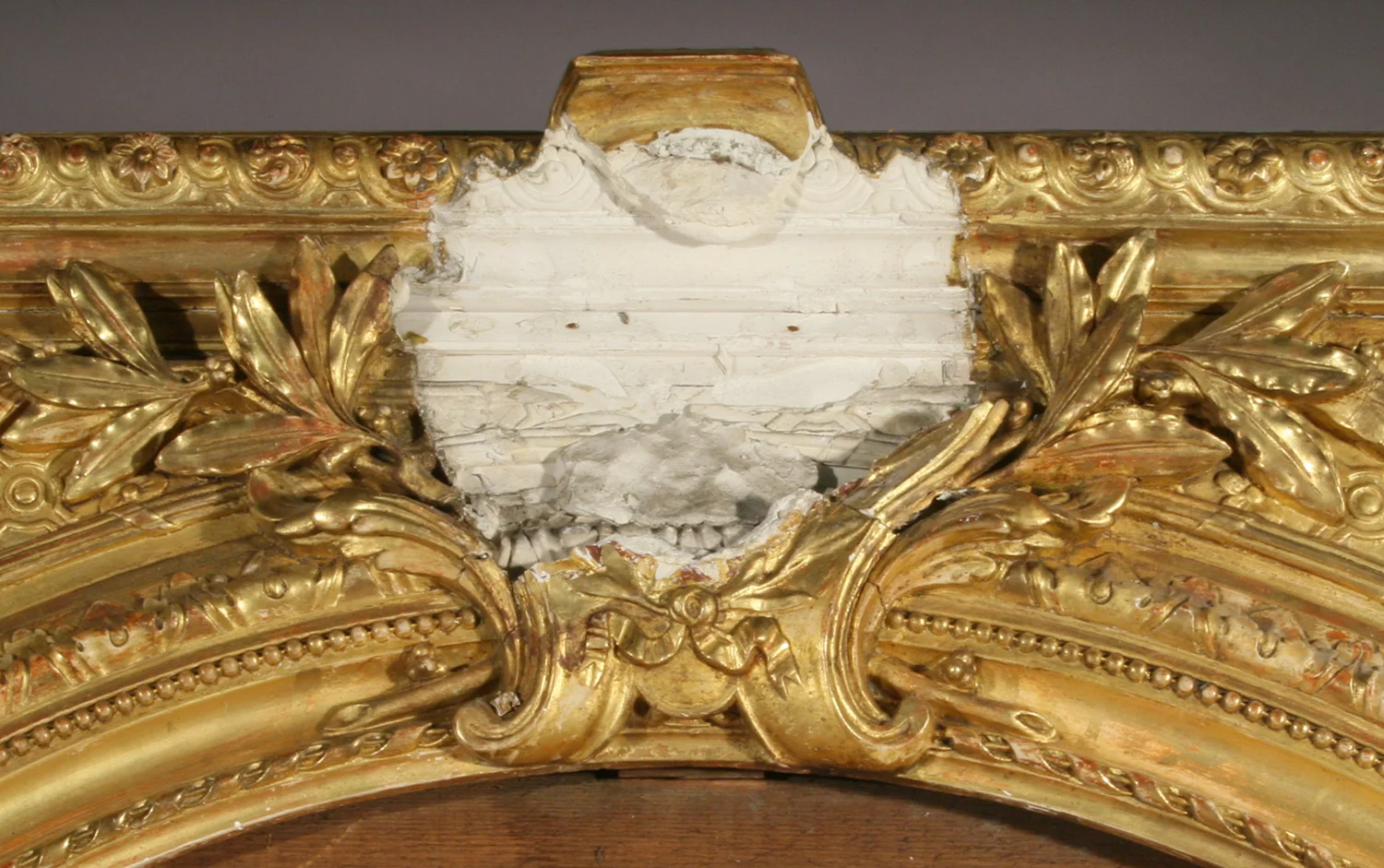

Giltwood frame mirror detail before conservation

Giltwood frame mirror detail before conservation

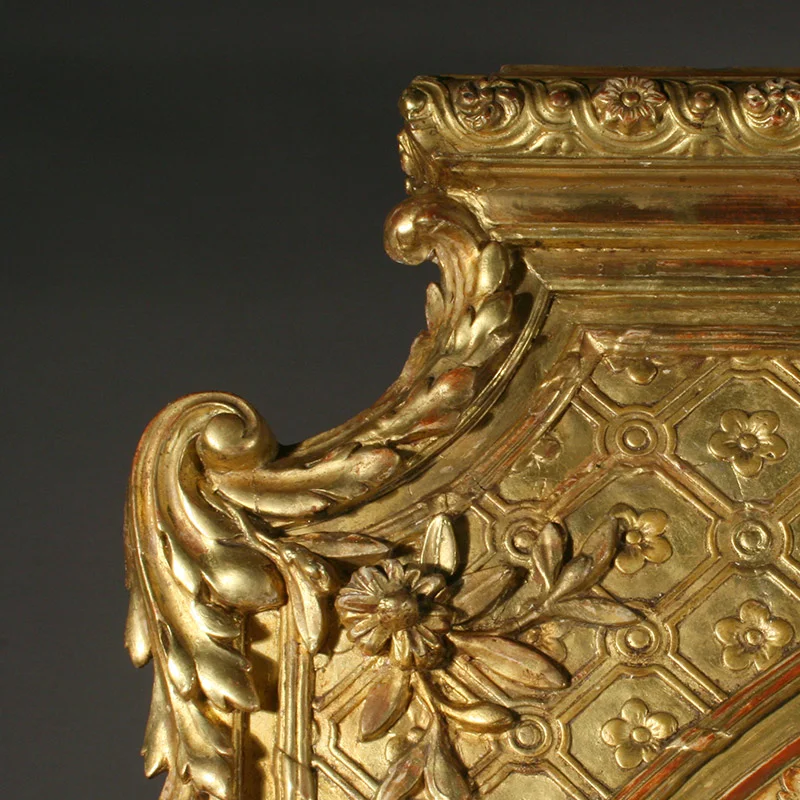

Detail of gilded sculptural element after treatment

Detail of gilded sculptural element after treatment

During treatment: Reattaching detached and shattered gilt sculptural element

During treatment: Reattaching detached and shattered gilt sculptural element

Gold leaf applied to the break after refilling with gesso and preparing surface for water gilding

Gold leaf applied to the break after refilling with gesso and preparing surface for water gilding

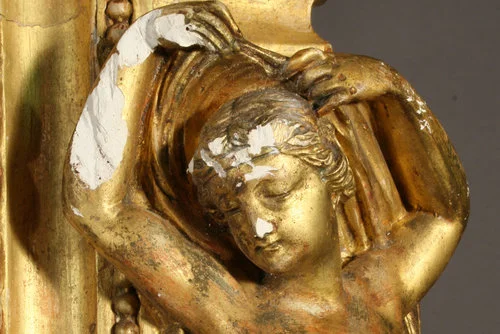

Sculpted figure before treatment. Note deep gesso damage. The missing material had to be sculpted in order restore the shape of the arm face details.

Sculpted figure before treatment. Note deep gesso damage. The missing material had to be sculpted in order restore the shape of the arm face details.

The losses were consolidated, infilled, selectively ingilded, burnished, patinated and aged to match surrounding areas.

The losses were consolidated, infilled, selectively ingilded, burnished, patinated and aged to match surrounding areas.

During treatment: Infilling gesso by building up layer upon layer

During treatment: Infilling gesso by building up layer upon layer

Detail before treatment

Detail before treatment

Detail after conservation

Detail after conservation
